SKYOND: Your Truck Engine's Breathing Buddy – Air Filter Care Guide

Truck engines are like the heart of heavy trucks, and they're super delicate. Even tiny bits of dust getting into the engine cylinders mess up the pistons and damage the valves. If your air filter is super filthy, it restricts airflow, which leads to incomplete fuel combustion. This causes the engine to shake, lose power, and burn more fuel. If it gets bad enough, it can shorten the engine's life. SKYOND has been focusing on heavy truck parts for over ten years, so we get how important air filters are. I've put together this simple maintenance guide based on common filter types and SKYOND products to keep your engine breathing easy.

一.  Get to Know Your Protector: Why Three-Stage Air Filters Rock

Most heavy trucks today use three-stage air filters. They use a mix of inertial dust removal and filtration to stop all sizes of dirt, giving multiple layers of defense. SKYOND's HOWO three-stage filter, for example, uses a three-part system: cyclone inertial separation + high-density filter media + sealed leak prevention. This traps over 99.5% of dust and sand, keeping the air entering your engine clean.

To keep it in good shape, understand how it's built. It usually includes an inertial dust cover, high-density filter media (SKYOND uses imported composite filter paper), sealing rings, and a dust removal device. Each part has its own maintenance needs. Keep them maintained based on their functions to make sure they keep working right

二.Different types of filters need different care. Here's what to keep in mind, along with some SKYOND product matches

1. Dry Inertia Filters: Watch Out for Air Leaks

These filters use spinning air to fling out big particles. You usually see them in dusty spots like African or Middle Eastern mines. They have parts like a dust cover, guide vanes, a dust outlet, and a dust cup. When you're taking care of them:

Clean Regularly: Check the dust cup every week. If it's more than 1/3 full, empty it. SKYOND's cups have a clear window, so it's easy to check. Clean the dust off the guide vanes every month. Use air (under 0.3MPa) and blow from the inside out gently.

Check Seals:When you install it, really check the rubber seal between the dust cover and the housing. SKYOND filters use rubber that lasts. If the seal is bad, replace it ASAP so dirty air doesn't mess with the engine.

SKYOND Suggestion:For tough places like mines, go with SKYOND's heavy-duty dry inertia filters. The guide vanes are better, so they remove 15% more dust than regular ones.

2. Wet Inertia Filters: Keep an Eye on the Oil

These filters trap dirt with an oil bath. You'll find them on older trucks or in places with lots of humidity. The most important thing is to keep the oil right.

Change Oil Often:Every 3 months or 10,000 km (whichever comes first), change the oil in the oil bath. SKYOND suggests using 15W-40 oil for heavy duty.

Get the Oil Level Right: only add oil to the level on the dipstick. Too much oil can get into the engine and cause carbon buildup. Too little, and it won't trap dirt well. Use a SKYOND dipstick to make sure the level is right.

Clean the Pan: When you change the oil, clean the oil pan really well. Rinse it with diesel, then blow it dry with air.

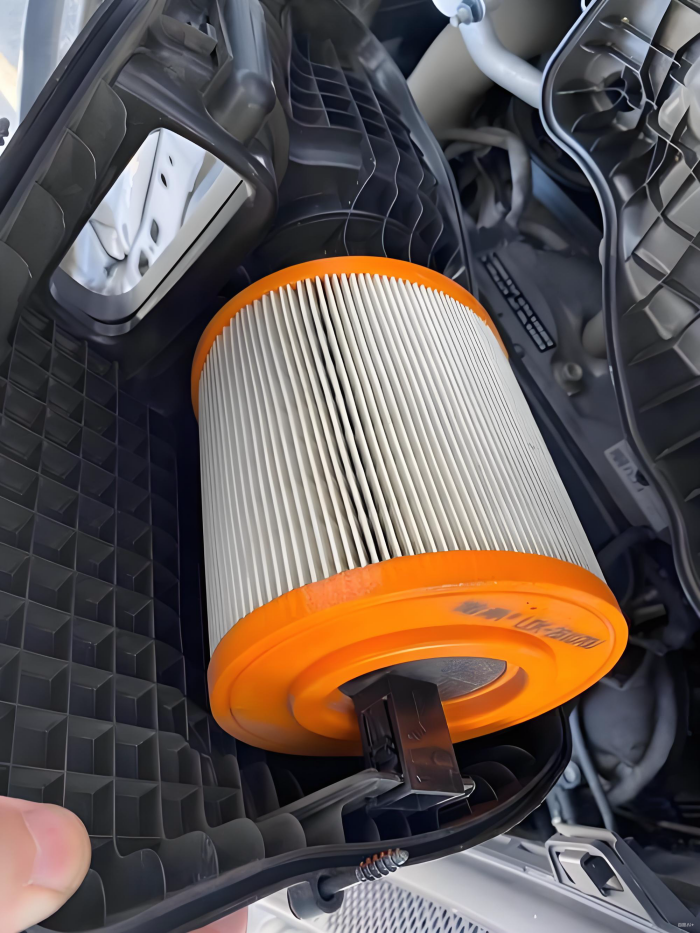

3. Dry Filters: Don't Wash Them!

These filters use a paper filter (SKYOND uses strong paper). They're all over modern trucks. The worst thing you can do is clean them wrong.

Clean the Right Way: Check the filter every 20,000 km. If it's just a little dusty, use a soft brush and brush gently. Or, use air (under 0.2MPa) from the inside out. never use water to clean.

Replace it Quickly: If the filter is ripped, or if it's too hard for air to get through, get a new one. SKYOND filters even have a line that changes color when you need to swap it!

Install Tip:Clean the inside of the filter housing before putting in the new filter. Make sure the seal is tight. SKYOND filters have a special seal that works 30% better than regular ones.

4. Wet Filters: Keep the Mesh Oiled

These filters use a metal mesh soaked in oil to grab dirt. You'll see these on older trucks. The main things are to keep the mesh clean and oiled.

Clean Well: Every 15,000 km, take the mesh apart and soak it in diesel for 30 mins. Brush it until the oil comes out clean. Then, blow it dry with air.

Oil it Right:Before putting it back, soak the mesh in clean oil. Let the extra oil drip off. You want it oily, but not dripping.

Seal and Align: When you put it together, make sure things line up right. Also, check the seals (SKYOND seals are the same size as the factory ones) so air doesn't leak.

三.Alright, let's chat about why SKYOND air filters are good and how to take care of them.

These days, most heavy-duty truck engines use paper air filters. SKYOND filters are way better than those old oil bath ones. Here's why:

Better Filtering:They use a special filter paper that's imported. It grabs tiny dust particles (0.3 microns), and it's super at it – like 99.5% effective or better! That's a good bit better than the old oil bath types, stopping even the small stuff.

Saves You Money:You won't need to the oil as often, and cleaning the dust off is easy. SKYOND filters also last longer than regular ones by about 20%, so you won't be swapping them out as much.

Better Airflow:The filter paper is wavy, so there's more surface area for filtering – about 35% more than normal filters. This means less air resistance (down by 15%), so your engine runs better.

Here are a couple of basic tips for keeping your SKYOND air filter in shape:

Think about where you're driving:If you're driving in dusty areas, adding a SKYOND pre-filter upfront is a good idea. That way, the main filter won't get clogged up as fast and will last you for a longer period.

Check it regularly: Before long trips, peek at the pressure difference alarm port on the SKYOND filter (some models have this). If the air resistance is too high (usually around 6kPa), clean the dust off or get a new filter.

Store them carefully:Keep any unused filters somewhere dry and airy. SKYOND filters usually come in a vacuum-sealed package to keep out moisture. Once you open it, get the filter installed within a week. This will help prevent the filter paper from getting damp.

四.Alright, wrapping things up: Keep that engine happy with good maintenance!

Your air filter might seem small, but it's the engine's main protector. If you don't take care of it, you'll end up spending more money and might even cause engine trouble. SKYOND is a trustworthy source for heavy-duty truck parts. We not only sell good air filters that fit most rides like HOWO, FAW, and Foton. We also aim to give our customers a complete deal with both products and support.

Want tips on maintaining your truck? Or maybe you're wondering if SKYOND has a filter for your model? Hit up our tech team anytime!

Help your engine breathe clean air, so your hauling route is cheaper and runs smoother. SKYOND is always here to help!
